LINKBOX_¿ÃÀοø »óÇ°ÀÌ Á¦°øÇÏ´Â ³×Æ®¿öÅ© ¼³Á¤±â´É°ú ¸ð´ÏÅ͸µ ±â´ÉÀº ¸ðµÎ µ¿ÀÏÇÏ°Ô Àû¿ëµË´Ï´Ù.

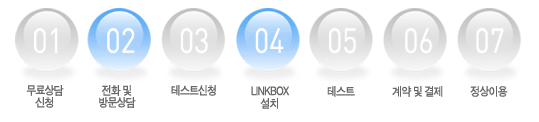

ÀüÈ ¶Ç´Â ¿Â¶óÀÎÀ¸·Î »ó´ãÀ» ½ÅûÇÏ½Ã¸é °í°´´Ô²² µü ¸Â´Â Àü¿ëȸ¼± ¹× ³×Æ®¿öÅ© ½Ã½ºÅÛÀ» ¹«·á ÄÁ¼³Æà ÇÏ¿© µå¸³´Ï´Ù.
|
|
|
|
|
|
|
|
1. LINKBOX_¿ÃÀοø 100
|
Property |
Value |
Brand Name (Model Name)
|
LINKBOX ¿ÃÀοø 100 (ELA-101S)
|
H
/
W
|
Processor / Chipset
|
Intel® C2.4
|
Memory / Storage
|
Supports RAM 512MB / HDD 80GB
|
Interfaces
|
4x10/100 Mbps Auto-Negotiation Ethernet NIC
|
Protocol / MB / Concurrent Users
|
CSMA/CD / Mini 478 / Under 128 Nodes
|
LAN Standard
|
IEEE 802.3 10BASE-T / IEEE 802.3u 100BASE-TX
|
Network Media
|
Ethernet
|
UTP Cat. 3,4,5
|
Fast Ethernet
|
UTP Cat.5
|
HA
|
Line Fail-over
|
Active-Active, Active-Standby, 10sec, Auto Convert
|
System By pass
|
System By pass Module ³»Àå (Optional)
|
Protocol
|
Routing
|
Static Routing, Policy Based Routing,
Dynamic Routing
|
Multicast
|
PIM SM/DM, DVMRP
|
S
/
W
|
Firewall
|
Type
|
Packet Filtering, Stateful/Deep Inspection,
Contents Inspection
|
Throughput
|
100 Mbps (Max)
|
Deep Inspection
|
HTTP/TCP (default), SMTP/FTP/DNS (Optional)
|
Parameter
|
Src/Dst IP, In/Out Interface,ServicePort, Time
|
VPN
|
Throughput
|
50 Mbps (Max)
|
Concurrent Sessions
|
50,000 (Max)
|
VPN Tunnels
|
400/800 (Max)
|
Authenticated Users
|
128 (Max)
|
Acceleration
|
Full Featured SSL VPN
|
Advanced Networking
|
Line Backup
|
Multi-WAN / Multi-LAN, Flexible NIC,
Multi-WAN Backup
|
NLB/NTD/SLB/QoS
|
NLB/NTD, SLB, HTB QoS Connected NLB, Auto
Reporting
|
IPS
|
Deep Inspection/Protocol Anomaly, (D)DoS,
Port Scan, Worm Detection
|
Contents Filtering
|
À¯ÇØ»çÀÌÆ® DB / Domain/URL/Word Filtering
|
Additional Function
|
NAT, DHCP, (D)DNS, RNCC, Application Layer
Gateway, Web Proxy
|
Management
|
Web based GUI, CLI, Telnet, SNMP v1/2,
MIB1/2
|
Áö¿øÇϴ ȸ¼±
|
M/E, FTTH, xDSL, Cable, L/L, F/R, ATM, ¹«¼± µî
|
C
O
N
D
I
T
I
O
N
|
I/O Interface
|
RS 232 x 1, DB-9 connector, VGA Monitor,
Keyboard
|
LED Indicators
|
Power status / HDD status / EMG status,
Link Speed /ACTX4
|
Operating/Storage Temperature
|
0 ¡É ~ 40 ¡É / -10 ¡É ~ 70 ¡É
|
Humidity
|
Operating 10% - 90% RH non-Condensing
|
Chassis Material
|
EGI Steel CR1.2t
|
Form Factor
|
19 inch std. 1.25U Rack Mountable
|
Dimension (W x H x D)
|
482 §® x 55 §® x 350 §®
|
Net Weight
|
7.5§¸
|
Power
|
Input Voltage
90VAC~264VAC/ 47Hz~63Hz
|
2. LINKBOX_¿ÃÀοø 200
|
Property |
Value |
Brand Name (Model Name)
|
LINKBOX ¿ÃÀοø 200 (ELA-103D)
|
H
/
W
|
Processor / Chipset
|
Intel¢ç P2.4§×, 533§Ö / i865PE Chipsets
|
Memory / Storage
|
Supports RAM 512MB / HDD 80GB
|
Interfaces
|
4x10/100 Mbps Auto-Negotiation Ethernet NIC
|
Protocol / MB / Concurrent Users
|
CSMA/CD / Mini 478 / Under 256 Nodes
|
LAN Standard
|
IEEE 802.3 10BASE-T / IEEE 802.3u 100BASE-TX
|
Network Media
|
Ethernet
|
UTP Cat. 3,4,5
|
Fast Ethernet
|
UTP Cat.5
|
HA
|
Line Fail-over
|
Active-Active, Active-Standby, 10sec, Auto Convert
|
System By pass
|
System By pass Module ³»Àå (Optional)
|
System Back up
|
Dual HDD, Emergency Switch, Manual Convert
|
Protocol
|
Routing
|
Static Routing, Policy Based Routing, Dynamic Routing
|
Multicast
|
PIM SM/DM, DVMRP
|
S
/
W
|
Firewall
|
Type
|
Packet Filtering, Stateful/Deep Inspection,
Contents Inspection
|
Throughput
|
200 Mbps (Max)
|
Deep Inspection
|
HTTP/TCP (default), SMTP/FTP/DNS (Optional)
|
Parameter
|
Src/Dst IP, In/Out Interface,ServicePort, Time
|
VPN
|
Throughput
|
100 Mbps (Max)
|
Concurrent Sessions
|
100,000 (Max)
|
VPN Tunnels
|
800/1,600 (Max)
|
Authenticated Users
|
256 (Max)
|
Acceleration
|
Full Featured SSL VPN
|
Advanced Networking
|
Line Backup
|
Multi-WAN / Multi-LAN, Flexible NIC,
Multi-WAN Backup
|
NLB/NTD/SLB/QoS
|
NLB/NTD, SLB, HTB QoS Connected NLB, Auto
Reporting
|
IPS
|
Deep Inspection/Protocol Anomaly, (D)DoS,
Port Scan, Worm Detection
|
Contents Filtering
|
À¯ÇØ»çÀÌÆ® DB / Domain/URL/Word Filtering
|
Additional Function
|
NAT, DHCP, (D)DNS, RNCC, Application Layer
Gateway, Web Proxy
|
Management
|
Web based GUI, CLI, Telnet, SNMP v1/2,
MIB1/2
|
Áö¿øÇϴ ȸ¼±
|
M/E, FTTH, xDSL, Cable, L/L, F/R, ATM, ¹«¼± µî
|
C
O
N
D
I
T
I
O
N
|
I/O Interface
|
RS 232 x 1, DB-9 connector, VGA Monitor,
Keyboard
|
LED Indicators
|
Power status / HDD status / EMG status,
Link Speed /ACTX4
|
Operating/Storage Temperature
|
0 ¡É ~ 40 ¡É / -10 ¡É ~ 70 ¡É
|
Humidity
|
Operating 10% - 90% RH non-Condensing
|
Chassis Material
|
EGI Steel CR1.2t
|
Form Factor
|
19 inch std. 1.25U Rack Mountable
|
Dimension (W x H x D)
|
482 §® x 55 §® x 350 §®
|
Net Weight
|
7.5§¸
|
Power
|
Input Voltage
90VAC~264VAC/ 47Hz~63Hz
|
3. LINKBOX_¿ÃÀοø 300
|
Property |
Value |
Brand Name (Model Name)
|
LINKBOX ¿ÃÀοø 300 (ELA-103V)
|
H
/
W
|
Processor / Chipset
|
Intel¢ç P2.8§×, 800§Ö / i865PE Chipsets
|
Memory / Storage
|
Supports RAM 512MB / HDD 80GB
|
Interfaces
|
4x10/100 Mbps Auto-Negotiation Ethernet NIC
|
Protocol / MB / Concurrent Users
|
CSMA/CD / Mini 478 / Under 512 Nodes
|
LAN Standard
|
IEEE 802.3 10BASE-T / IEEE 802.3u 100BASE-TX
|
Network Media
|
Ethernet
|
UTP Cat. 3,4,5
|
Fast Ethernet
|
UTP Cat.5
|
HA
|
Line Fail-over
|
Active-Active, Active-Standby, 10sec, Auto Convert
|
System Fail-over
|
Dual System, Active-Standby Mode, 5sec, Auto Convert
|
System By pass
|
System By pass Module ³»Àå (Optional)
|
Protocol
|
Routing
|
Static Routing, Policy Based Routing,
Dynamic Routing
|
Multicast
|
PIM SM/DM, DVMRP
|
S
/
W
|
Firewall
|
Type
|
Packet Filtering, Stateful/Deep Inspection,
Contents Inspection
|
Throughput
|
300 Mbps (Max)
|
Deep Inspection
|
HTTP/TCP (default), SMTP/FTP/DNS (Optional)
|
Parameter
|
Src/Dst IP, In/Out Interface,ServicePort, Time
|
VPN
|
Throughput
|
200 Mbps (Max)
|
Concurrent Sessions
|
200,000 (Max)
|
VPN Tunnels
|
1,200/2,400 (Max)
|
Authenticated Users
|
512 (Max)
|
Acceleration
|
Full Featured SSL VPN
|
Advanced Networking
|
Line Backup
|
Multi-WAN / Multi-LAN, Flexible NIC,
Multi-WAN Backup
|
NLB/NTD/SLB/QoS
|
NLB/NTD, SLB, HTB QoS Connected NLB, Auto
Reporting
|
IPS
|
Deep Inspection/Protocol Anomaly, (D)DoS,
Port Scan, Worm Detection
|
Contents Filtering
|
À¯ÇØ»çÀÌÆ® DB / Domain/URL/Word Filtering
|
Additional Function
|
NAT, DHCP, (D)DNS, RNCC, Application Layer
Gateway, Web Proxy
|
Management
|
Web based GUI, CLI, Telnet, SNMP v1/2,
MIB1/2
|
Áö¿øÇϴ ȸ¼±
|
M/E, FTTH, xDSL, Cable, L/L, F/R, ATM, ¹«¼± µî
|
C
O
N
D
I
T
I
O
N
|
I/O Interface
|
RS 232 x 1, DB-9 connector, VGA Monitor,
Keyboard
|
LED Indicators
|
Power status / HDD status / EMG status,
Link Speed /ACTX4
|
Operating/Storage Temperature
|
0 ¡É ~ 40 ¡É / -10 ¡É ~ 70 ¡É
|
Humidity
|
Operating 10% - 90% RH non-Condensing
|
Chassis Material
|
EGI Steel CR1.2t
|
Form Factor
|
19 inch std. 1.25U Rack Mountable
|
Dimension (W x H x D)
|
482 §® x 55 §® x 350 §®
|
Net Weight
|
7.5§¸
|
Power
|
Input Voltage
90VAC~264VAC/ 47Hz~63Hz
|
4. LINKBOX_¿ÃÀοø 500
|
Property |
Value |
Brand Name (Model Name)
|
LINKBOX ¿ÃÀοø 500 (ELA-505V)
|
H
/
W
|
Processor / Chipset
|
Intel¢ç Core2Duo P1.8§×, 800§Ö / P35+ICH9
|
Memory / Storage
|
Supports RAM 1,024MB / SSD 4GB / HDD 160GB
|
Interfaces
|
1x10/100/1000 Mbps, 3x10/100 Mbps Auto-Negotiation Ethernet NIC
|
Protocol / MB / Concurrent Users
|
CSMA/CD / LGA775 / Under 512 Nodes
|
LAN Standard
|
IEEE 802.3 10BASE-T / 802.3u 100BASE-TX / 802.3ab 1000BASE-T
|
Network Media
|
Ethernet
|
UTP Cat. 3,4,5
|
Fast Ethernet
|
UTP Cat.5
|
HA
|
Line Fail-over
|
Active-Active, Active-Standby, 10sec, Auto Convert
|
System Fail-over
|
Master-Backup Dual System, Active-Standby Mode, 5sec, Auto Convert
|
Protocol
|
Routing
|
Static Routing, Policy Based Routing,
Dynamic Routing
|
Multicast
|
PIM SM/DM, DVMRP
|
S
/
W
|
Firewall
|
Type
|
Packet Filtering, Stateful/Deep Inspection,
Contents Inspection
|
Throughput
|
300 Mbps (Max)
|
Deep Inspection
|
HTTP/TCP (default), SMTP/FTP/DNS (Optional)
|
Parameter
|
Mac Address, Src/Dst IP, In/Out Interface, Service Port, Time
|
VPN
|
Throughput
|
200 Mbps (Max)
|
Concurrent Sessions
|
300,000 (Max)
|
VPN Tunnels
|
1,600/3,200 (Max)
|
Authenticated Users
|
512 (Max)
|
Acceleration
|
Full Featured SSL VPN
|
Advanced Networking
|
Line Backup
|
Multi-WAN / Multi-LAN, Flexible NIC,
Multi-WAN Backup
|
System Backup (VRRP)
|
Master-Backup, µ¿ÀÏ SessionÀ¯Áö, LAN-WAN ¿¬µ¿Çü, Auto Failover
|
NLB/NTD/SLB/QoS
|
NLB/NTD, SLB, HTB QoS Connected NLB, Auto
Reporting
|
IPS
|
Traffic/Protocol Anomaly, Signature Inspection(Pattern Match)
|
Contents Filtering
|
À¯ÇØ»çÀÌÆ®DB/ Domain/URL/Word Filtering, Web Proxy
|
Additional Function
|
NAT, DHCP, (D)DNS, RNCC, Application Layer Gateway, Wins Server
|
Management
|
Web based GUI, CLI, Telnet, SNMP v1/2, MIB1/2
|
Áö¿øÇϴ ȸ¼±
|
M/E, FTTH, xDSL, Cable, L/L, F/R, ATM, ¹«¼± µî
|
C
O
N
D
I
T
I
O
N
|
I/O Interface
|
RS 232 x 1, DB-9 connector, VGA Monitor, Keyboard
|
LED Indicators
|
Power status, HDD status, Link Speed /ACTX4
|
Operating/Storage Temperature
|
0 ¡É ~ 40 ¡É / -10 ¡É ~ 70 ¡É
|
Humidity
|
Operating 10% - 90% RH non-Condensing
|
Chassis Material
|
EGI Steel CR1.2t
|
Form Factor
|
19 inch std. 2U Rack Mountable
|
Dimension (W x H x D)
|
482 §® x 88 §® x 400 §®
|
Net Weight
|
15.0§¸
|
Power
|
Input Voltage 90VAC~264VAC/ 47Hz~63Hz x 2set
|
5. LINKBOX_¿ÃÀοø 1000
|
Property |
Value |
Brand Name (Model Name)
|
LINKBOX ¿ÃÀοø 1000 (ELA-510V)
|
H
/
W
|
Processor / Chipset
|
Intel¢ç Core2Quad P2.8§×, 1333§Ö / P45+ICH10
|
Memory / Storage
|
Supports RAM 2,048MB / SSD 4GB / HDD 320GB
|
Interfaces
|
2x10/100/1000 Mbps, 4x10/100 Mbps Auto-Negotiation Ethernet NIC
|
Protocol / MB / Concurrent Users
|
CSMA/CD / LGA775 / Under 1,024 Nodes
|
LAN Standard
|
IEEE 802.3 10BASE-T / 802.3u 100BASE-TX / 802.3ab 1000BASE-T
|
Network Media
|
Ethernet
|
UTP Cat. 3,4,5
|
Fast Ethernet
|
UTP Cat.5
|
HA
|
Line Fail-over
|
Active-Active, Active-Standby, 10sec, Auto Convert
|
System Fail-over
|
Master-Backup Dual System, Active-Standby Mode, 5sec, Auto Convert
|
Protocol
|
Routing
|
Static Routing, Policy Based Routing,
Dynamic Routing
|
Multicast
|
PIM SM/DM, DVMRP
|
S
/
W
|
Firewall
|
Type
|
Packet Filtering, Stateful/Deep Inspection,
Contents Inspection
|
Throughput
|
1,000 Mbps (Max)
|
Deep Inspection
|
HTTP/TCP (default), SMTP/FTP/DNS (Optional)
|
Parameter
|
Mac Address, Src/Dst IP, In/Out Interface, Service Port, Time
|
VPN
|
Throughput
|
500 Mbps (Max)
|
Concurrent Sessions
|
500,000 (Max)
|
VPN Tunnels
|
2,000/5,000 (Max)
|
Authenticated Users
|
1,024 (Max)
|
Acceleration
|
Full Featured SSL VPN
|
Advanced Networking
|
Line Backup
|
Multi-WAN / Multi-LAN, Flexible NIC,
Multi-WAN Backup
|
System Backup (VRRP)
|
Master-Backup, µ¿ÀÏ SessionÀ¯Áö, LAN-WAN ¿¬µ¿Çü, Auto Failover
|
NLB/NTD/SLB/QoS
|
NLB/NTD, SLB, HTB QoS Connected NLB, Auto
Reporting
|
IPS
|
Traffic/Protocol Anomaly, Signature Inspection(Pattern Match)
|
Contents Filtering
|
À¯ÇØ»çÀÌÆ®DB/ Domain/URL/Word Filtering, Web Proxy
|
Additional Function
|
NAT, DHCP, (D)DNS, RNCC, Application Layer Gateway, Wins Server
|
Management
|
Web based GUI, CLI, Telnet, SNMP v1/2,
MIB1/2
|
Áö¿øÇϴ ȸ¼±
|
M/E, FTTH, xDSL, Cable, L/L, F/R, ATM, ¹«¼± µî
|
C
O
N
D
I
T
I
O
N
|
I/O Interface
|
RS 232 x 1, DB-9 connector, VGA Monitor, Keyboard
|
LED Indicators
|
Power status, HDD status, Link Speed /ACT x 6ea
|
Operating/Storage Temperature
|
0 ¡É ~ 40 ¡É / -10 ¡É ~ 70 ¡É
|
Humidity
|
Operating 10% - 90% RH non-Condensing
|
Chassis Material
|
EGI Steel CR1.2t
|
Form Factor
|
19 inch std. 2U Rack Mountable
|
Dimension (W x H x D)
|
482 §® x 88 §® x 400 §®
|
Net Weight
|
15.0§¸
|
Power
|
Input Voltage 90VAC~264VAC/ 47Hz~63Hz x 2set
|
|
±ÇÀå User ¼ö´Â ¿øÇÒÇÑ ÀÎÅÍ³Ý ¼Óµµ¸¦ º¸ÀåÇϱâ À§ÇÑ ±ÇÀå ÃÖ´ë Client PC ¼ö ÀÔ´Ï´Ù.
Throughput Àº LINKBOX_¿ÃÀοøÀÇ ¸ðµç ±â´ÉÀ» È°¼ºÈÇÒ °æ¿ìÀÇ ThroughputÀÔ´Ï´Ù.
»ç¿ëÇÏ´Â ±â´É ¹× Á¤Ã¥ÀÇ ¼ö¿¡ µû¶ó ThroughputÀº ´Þ¶óÁú ¼ö ÀÖ½À´Ï´Ù.
|
|
|
|
|
| |
